Globalyzer XSL Support
You can use XSL transformation (
-xslfile, --xsl-file
) to generate a report in output format (html, text, etc) defined
in your XSL transformation file. XSL transformation uses XML format
as input to the transformation. See xsl/globalyzer_scan_history.xsd
XML schema for details. See xsl directory .xsl files for examples
of XSL transformation and for available .xsl files.
Available XSL Files
| XSL |
Description |
| scan_diff_simple.xsl |
Creates an HTML page with the issue count differences
between two scans of the specified Globalyzer Project and Scan |
| scan_diff_text.xsl |
Creates s plain text file with the issue count
differences between two scans of the specified Globalyzer Project
and Scan |
| scan_history_simple.xsl |
Creates an HTML page with the Scan History table for the
specified Globalyzer Project and Scan |
| scan_history_text.xsl |
Creates a plain text file with the Scan History for the
specified Globalyzer Project and Scan |
| scan_results.xsl |
Creates multiple HTML pages and an index HTML page
containing the summary and detailed Scan Results for the
specified Globalyzer Project and Scan |
| scan_results_simple.xsl |
Creates a single HTML page containing the summary and
detailed Scan Results for the specified Globalyzer Project and
Scan |
| scan_results_text.xsl |
Creates a single plain text page containing the detailed
Scan Results for the specified Globalyzer Project and Scan |
| scan_results_summary.xsl |
Creates a single HTML page containing the Scan Results
Summary for the specified Globalyzer Project and Scan |

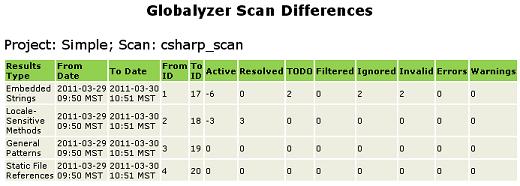

scan_diff_simple.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the filename. Do not specify a
--result-type
if you want the scan differences for all Scan Result types.
java -jar globalyzer-cli.jar --scan-diff –-project-name Simple
--scan-name csharp_scan --from-date 2011-03-29
--report-file scan_diff_simple.html
--xsl-file
xsl/scan_diff_simple.xsl

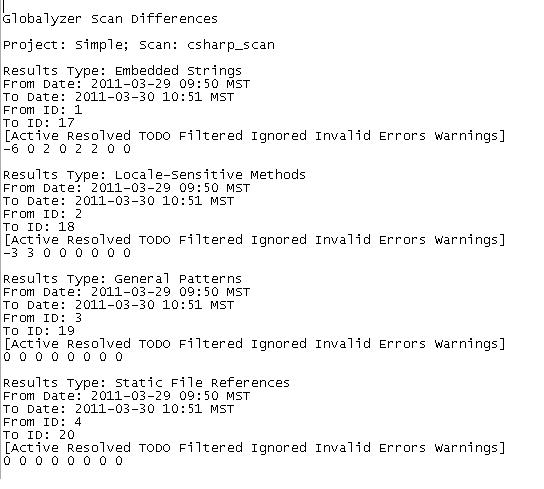

scan_diff_text.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the plain text filename. Do not specify a
--result-type
if you want the scan differences for all Scan Result types.
java -jar globalyzer-cli.jar --scan-diff –-project-name Simple
--scan-name csharp_scan --from-date 2011-03-29
--report-file scan_diff_text.txt
--xsl-file
xsl/scan_diff_text.xsl

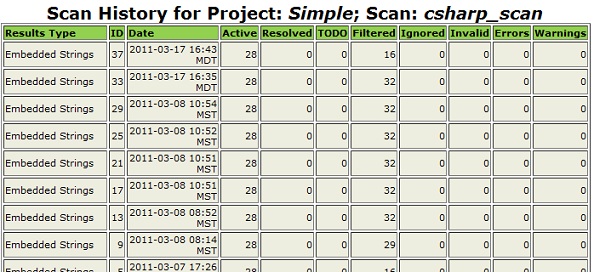

scan_history_simple.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the HTML filename. Do not specify a
--result-type
if you want the history for all Scan Result types.
java -jar globalyzer-cli.jar --scan-history –-project-name Simple
--scan-name csharp_scan --report-file
scan_history_simple.html
–-xsl-file
xsl/scan_history_simple.xsl

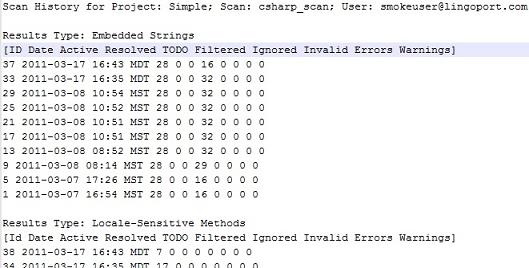

scan_history_text.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the plain text filename. Do not specify a
--result-type
if you want the history for all Scan Result types.
java -jar globalyzer-cli.jar --scan-history –-project-name Simple
--scan-name csharp_scan --report-file
scan_history_text.txt
–-xsl-file
xsl/scan_history_text.xsl

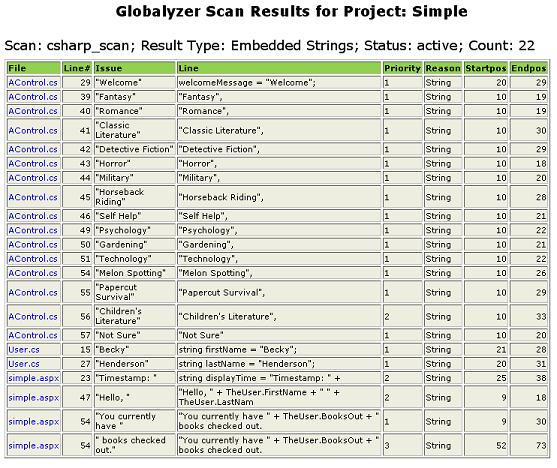

scan_results.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-dir
to the path where you want the multiple HTML files to be created.
The generated file for Active Embedded Strings is shown below.
java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-dir scan_results
--report-type xsl –-xsl-file xsl/scan_results.xsl

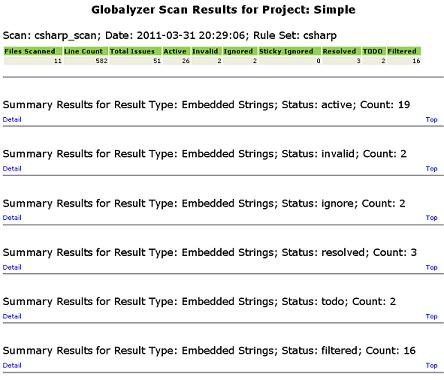

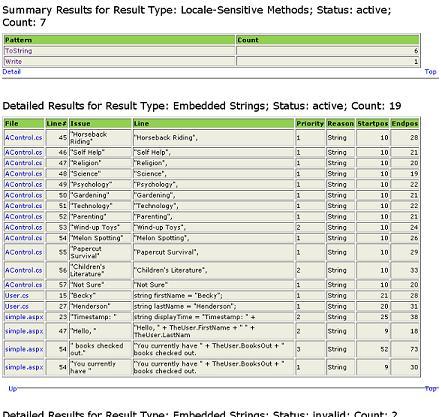

scan_results_simple.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the HTML file to be created.
java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_simple.html
--report-type xsl –-xsl-file xsl/scan_results_simple.xsl

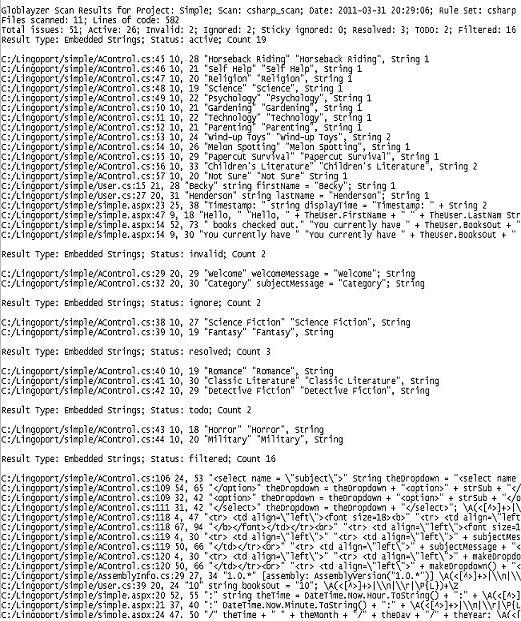

scan_results_text.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the plain text file to be created.
java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_text.txt
--report-type xsl –-xsl-file xsl/scan_results_text.xsl

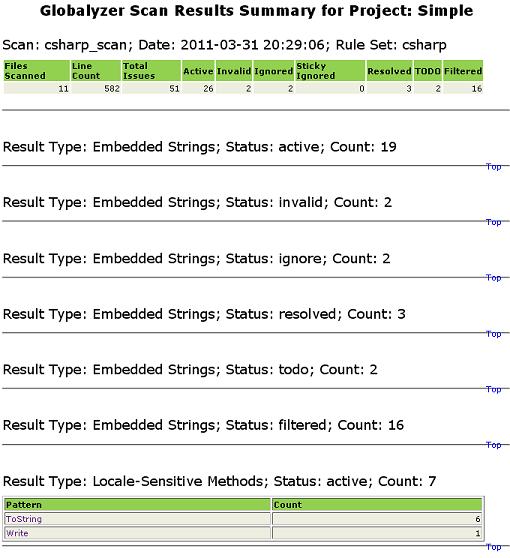

scan_results_summary.xsl
The following shows an example of using this XSL file in the
Command Line Client. In this case, you need to set
--report-file
to the HTML file to be created.
java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_summary.html
--report-type xsl –-xsl-file xsl/scan_results_summary.xsl
|
